Normal vs. Abnormal Chest X-Rays: What Do They Reveal?
Chest X-rays are not just pictures; they are windows into the health of your thoracic cavity, including lungs, heart, airways, blood vessels, and the bones of your spine and chest wall.
These detailed images are pivotal in distinguishing normal from concerning signs, steering clinicians toward accurate diagnoses and effective treatments.
What Does a Healthy Chest Look Like on an X-Ray?
What should you expect to see in a normal chest X-ray? Here are the visuals that suggest everything is working just fine.

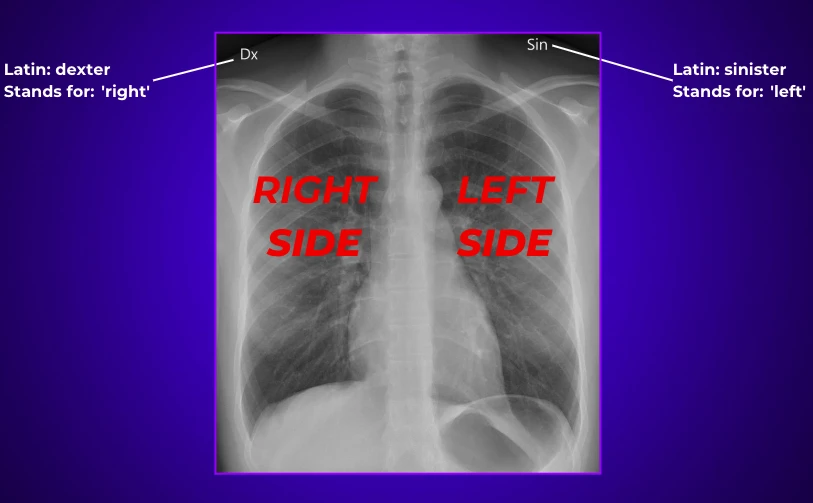

Firstly, when viewing a chest X-ray, it's important to remember that the left side of the image corresponds to the patient’s right side, and the right side of the image corresponds to the patient’s left side. This reversal helps align with the patient’s perspective.
The lungs are divided into lobes, which are distinct sections separated by fissures:
- The right lung has three lobes: the upper lobe (RUL), middle lobe (RML), and lower lobe (RLL).
- The left lung has two lobes: the upper lobe (LUL) and lower lobe (LLL), with the space of the middle lobe taken up by the heart.
On a chest X-ray, these lobes are not always distinctly visible, but subtle differences in their density or markings can help identify abnormalities like consolidation, atelectasis, or fluid.
Lung Fields

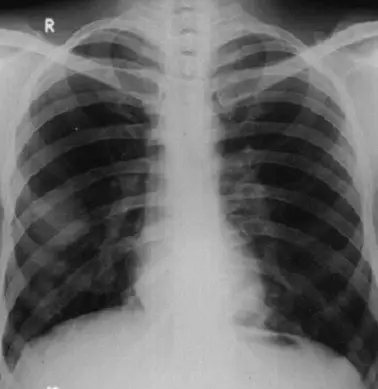

Expect to see a lot of black, that's the air in your lungs, interlaced with delicate white lines that map out your airways and blood vessels.
Diaphragm and Heart Contours

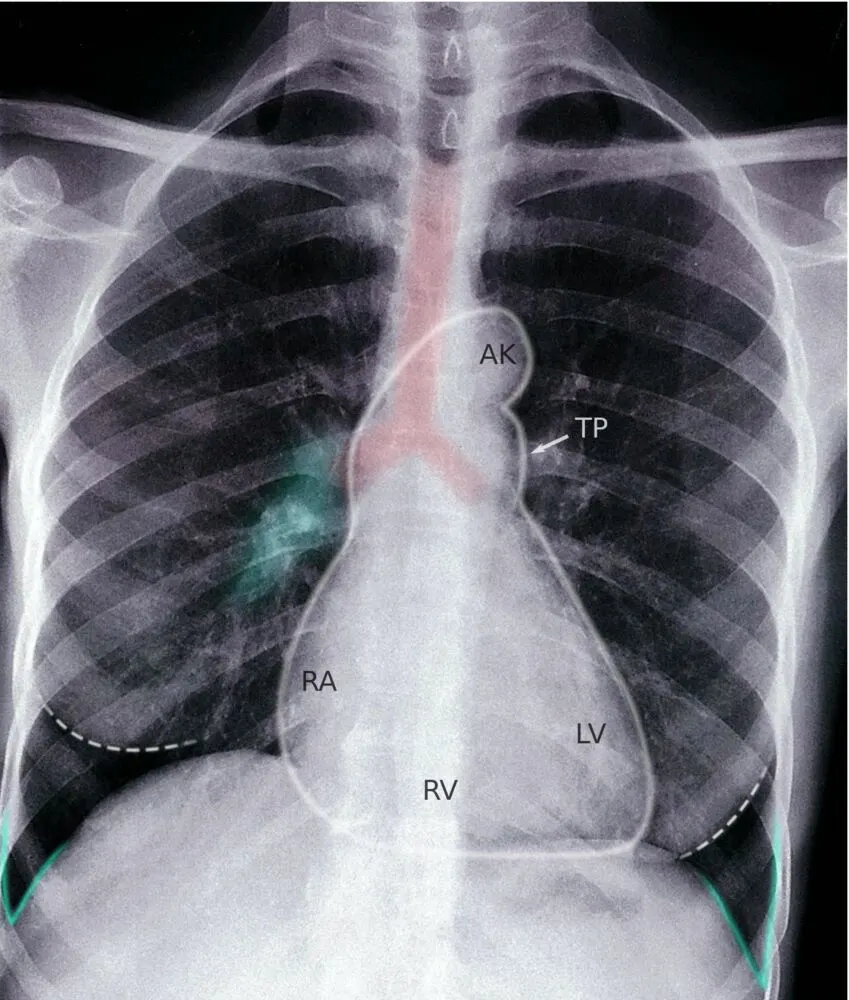

Your diaphragm should show a neat, curved line, sitting higher on the right because of the liver underneath. The heart should not occupy more than half the chest width, its outline smooth and distinct.
Bone Integrity
Your ribs, spine, and clavicles should appear intact, aligned, and free from any fractures or unusual growths.

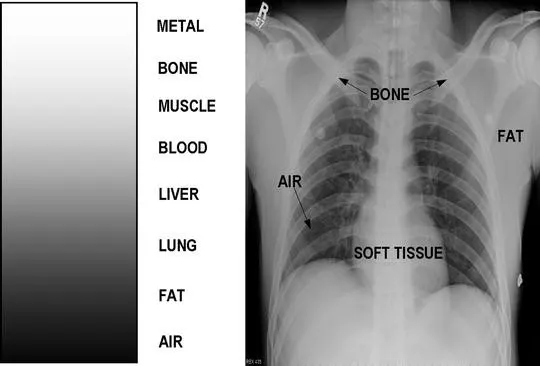

Soft Tissue Normalcy
The muscles and fat around your chest wall should look normal without any signs of swelling or masses.
What Can Go Wrong? Spotting Troubles in Chest X-Rays
When something's off, what abnormalities might your chest X-ray reveal? Let’s dive into the signs that call for a closer look:
-
Are There Unwanted Shadows?: Opacities or white spots can range from pneumonia patches (consolidation) to signs of lung cancer or benign growths.

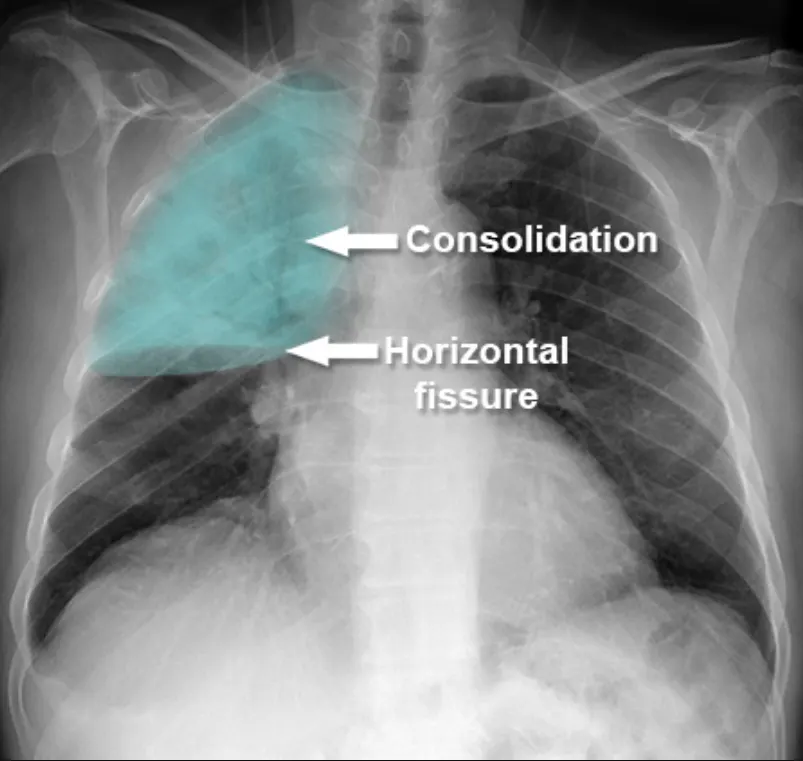

An abnormal chest X-ray showing areas of consolidation typical of pneumonia -
Is There Excess Fluid?: Fluid in the pleural space can blur the lines of your lung and heart, commonly due to conditions like heart or renal failure, liver disease, or infections.

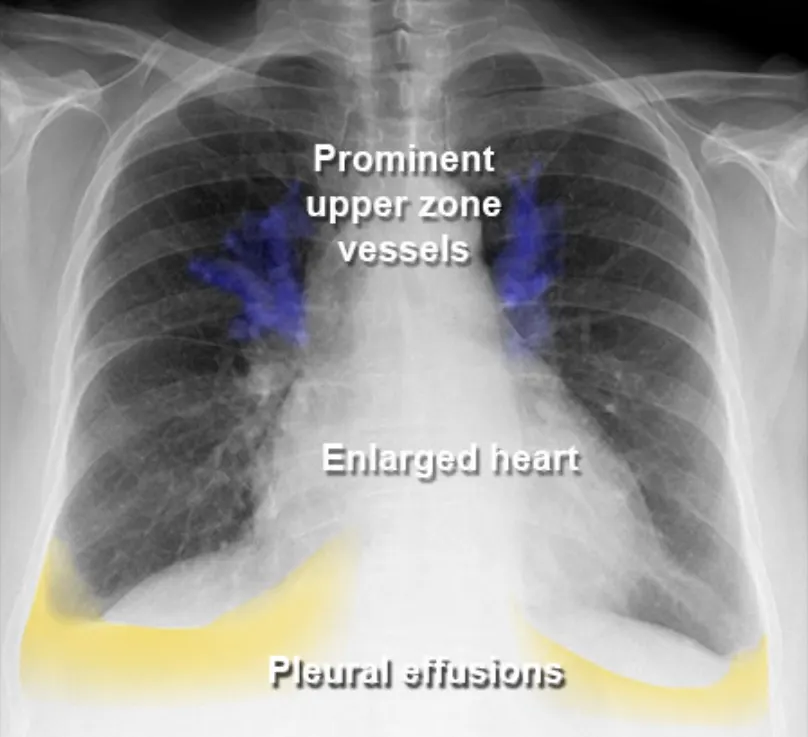

Chest X-ray with pleural effusion, displaying blurring of lung borders -
How Big is the Heart?: An enlarged heart might signal issues like cardiomyopathy, heart valve problems, or hypertension.
Chest X-ray depicting an enlarged heart Heart size is not assessed by an absolute measurement, but rather is measured in relation to the total thoracic width - the Cardio-Thoracic Ratio (CTR).
CTR = Cardiac Width : Thoracic Width
The CTR is frequently expressed as a percentage. A CTR of greater than 1:2 (50%) is considered abnormal. For the example image above, the CTR = 68%.
Accurate assessment of heart size assumes the projection is Posterior-Anterior (PA) and that cardiac size is not exaggerated by factors such as patient rotation.
-
Are the Lungs Fully Inflated?: Lung collapse or atelectasis shows up as dense areas, with the heart or trachea possibly shifting toward the affected lung.
Chest X-ray with lower lobe atelectasis with noticeable shift in mediastinal structures -
Is There Air Where It Shouldn’t Be?: A pneumothorax, or air in the pleural space, manifests as clear spaces where lung markings should be.
Chest X-ray illustrating a pneumothorax with visible pleural air -
Do the Lungs Look Overly Large?: In conditions like COPD, lungs appear hyperinflated with flattened diaphragms and increased chest diameter.

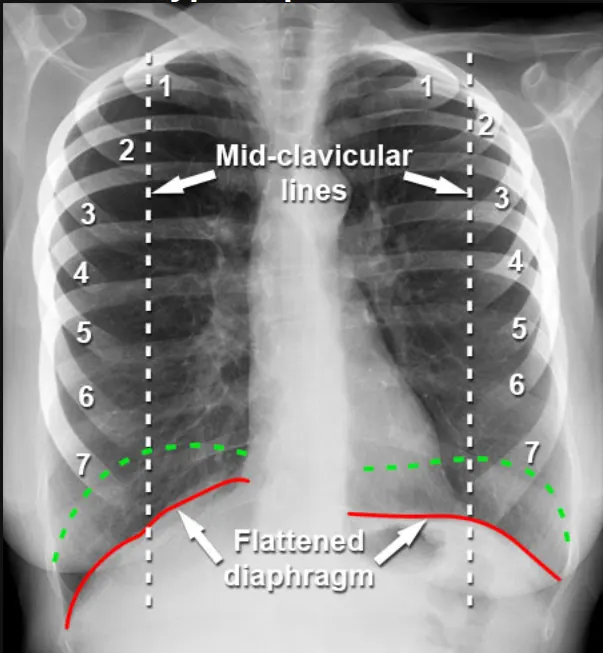

Chest X-ray of a patient with COPD showing hyperinflated lungs -
Are the Lymph Nodes Enlarged?: Enlarged lymph nodes appear as discrete lumps, often pointing to infections, cancers, or autoimmune disorders.
Chest X-ray with visible hilar lymphadenopathy
What’s Next? Understanding the Clinical Significance
What do these findings imply for further tests or treatments?
Depending on the anomaly, your doctor might recommend a CT scan, biopsy, or other specialized tests to get to the bottom of the issue.
Before you go...
How valuable is a chest X-ray? Extremely!
By accurately reading these images, healthcare providers can kickstart the most effective care plans, gaining crucial insights into your pulmonary, cardiac, and overall health.
Let's appreciate this fundamental diagnostic tool for the clarity it brings to medical evaluations.
If you're interested in further exploring the nuances of chest X-ray interpretation, why not try our X-ray Interpreter tool?
It's designed to assist both professionals and enthusiasts in understanding complex radiographic images.
